1700C Controlled Atmosphere Muffle Furnace With Gas Purging System W300mm

Name: 1700C Controlled Atmosphere Muffle Furnace With Gas Purging System W300mm
Brand: Programtherm
Price: 1 USD

Best 1700C Controlled Atmosphere Muffle Furnace With Gas Purging System W300mm wholesale

Brand Name : Programtherm

Model Number : PM L12/17A

Certification : CE

Payment Terms : T/T, L/C

Delivery Time : 30 working days

Usage : Heat treatment, ignition, determination, analysis, ashing

Tmax temperature : 1700 degree C

Working temperature : 1600 degree C

Chamber size : W300xD200xH200mm

Chamber material : 1800# Alumina fiber board

Heating elements : MoSi2 rods

Temp Controller : Digital auto-tune PID 30 segments

Thermocouple : B

Warranty : Two years

After-sales service : free spareparts including air freight

Contact Now

Overview for Atmosphere Muffle Furnace

The atmosphere furnace features equip a solenoid valve on the gas inlet for gas injection, the controller on the panel can set the needed injection temperature. However, the chamber furnace is not sealing tight, it is a standard muffle furnace model with high alumina fiber insulated chamber, low energy consumption, powerful heating elements with temperature up to 1700 degree C. The small cost-effective atmosphere muffle furnace is a good choice for the users who has limited budget while they do have the need for heat treating, reacting studies, sintering processes, and ceramic firing in labs and industrial.

Main Features

Tmax 1700 °C
Furnace applys in lab, school, research institute, box type, benchtop
Designed with gas inlet and equiped a solenoid valve for AUTO GAS INJECTION
Dual steel housing with fan cooling for low surface temperature
Fiber-insulated chamber for maximum temperature stability and uniformity
Embedded heating elements on two sides
High temperature muffle furnace with PID temperature controller 30 segments
Type B thermocouple
CE certified, standard

Ramping Dwelling and Cooling Curves for 1700C High Temperature Muffle Furnace

Safety Measures

Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
Power failure protection resumes furnace operation right after the point of failure when power is reestablished
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

1700C Controlled Atmosphere Muffle Furnace With Gas Purging System W300mm

Front view for economical atmosphere Muffle furnace 1700 degree C

1700C Controlled Atmosphere Muffle Furnace With Gas Purging System W300mm

Designed gas inlet with solenoid valve for auto gas injection

1700C Controlled Atmosphere Muffle Furnace With Gas Purging System W300mm

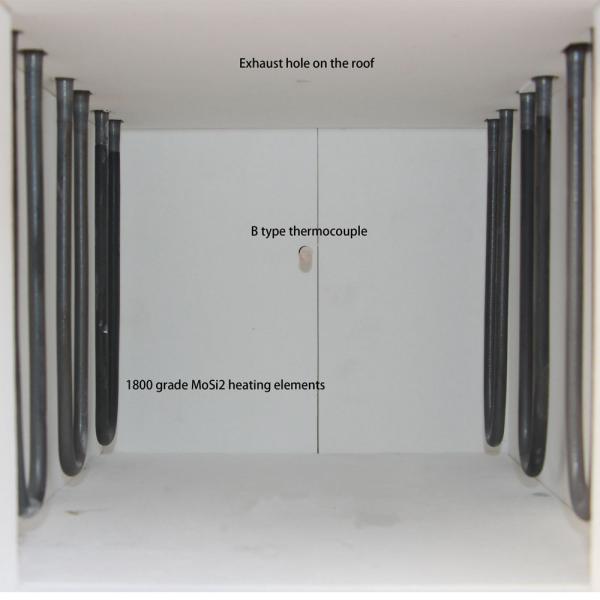

Chamber details for the small economical atmosphere Muffle furnace 1700 degree C with MoSi2 rod heaters

Technical Specifications

Model No.	PM L12/17A
Furnace structure	Carbon Double-layer steel structure with environmental powder coating 1800 grade fiber alumina with reflective coating - max energy-saving design Air cooling fan to keep case temperature below 60°C
Chamber size (DxWxH)	300x200x200mm /12x8x8" Capacity:12 Liters
Power supply	6KW AC208-240V, 50/60Hz, single phase
Working temperature	Tmax 1700°C (3092°F) Continuously 1600°C (2912°F) Temperature uniformity +/- 5C
Temperature controller	YD518P temperature controller is included. PID control and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm Temperature accuracy +/- 1°C Built-in auto gas injection controlled programs
Heating rate	≤10°C /min
Thermocouple	B type
Chamber lining	Mitsubishi Raw Material high alumina 1800# fiber board
Electronic components	Siemens maker air switch Schneider maker AC contactor, SSR Relay etc
Heating element	Super 1800 grade MoSi2 heating elements Heating from two sides
Shipping info	Weight: 220kgs W700xL800xH1070mm
Compliance	CE, ISO
Warranty	2 years limited warranty with lifetime technical support

Application Notes

However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this high temperature muffle furnace without necessary safety controls and supervision.
Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

Size Comparison

Item name	PM L8/17	PM L18/17	PM L36/17
Inner size (DxWxH)	200x200x200mm	300x250x250	400x300x300mm
Capacity	8 L	18 L	36 L
Power	220V/5KW	380V/7KW	380V/13KW
Furnace dimensions (LxWxH)	600x610x900mm	630x750x980mm	600x870x740mm
Net Weight	165 KGS	260 KGS	300 KGS
